Screenshots (iPad)

Stacks Image 63

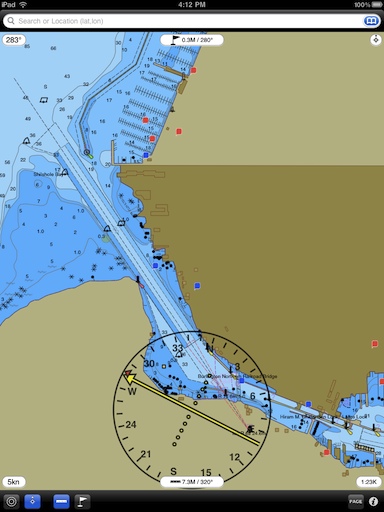

Main chart view. This screenshot is from the Ballard locks and Shilshole marina in the area of Seattle.

Standard ENC (Electronic Navigational Chart) features are used for the display. Refer to Chart No 1 for symbology.

ActiveCaptain features are visible as the familiar markers from the activecaptain.com website.

The "compass rose" at the bottom is the Horizontal Situation Indicator (HSI) instrument. It shows current track, desired track and cross track error in a single display.
Stacks Image 67

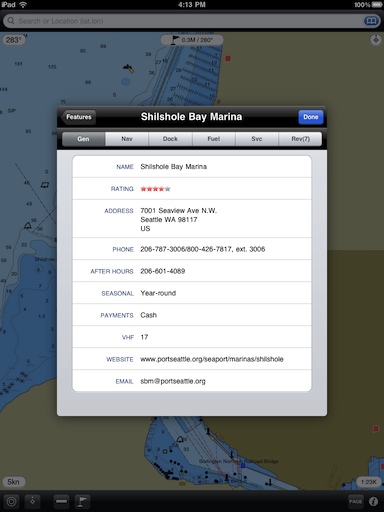

Display of ActiveCaptain information about the Shilshole Bay Marina. Notice the tabs at the top that you can use to access additional information exactly as on the activecaptain.com website. The reviews tab shows that there are currently 7 reviews available for this marina.
Stacks Image 70

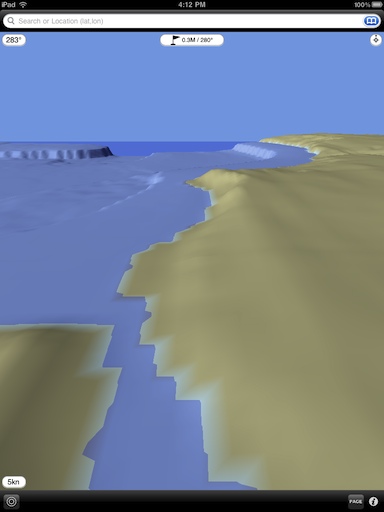

Bathymetry view. This screenshot is again from the same area. Notice that the shape of land and the bottom of the ocean is clearly visible on this display.

[Please note: there is no bathymetry for the Great Lakes region or the combined US & Canada charts.]
Stacks Image 73

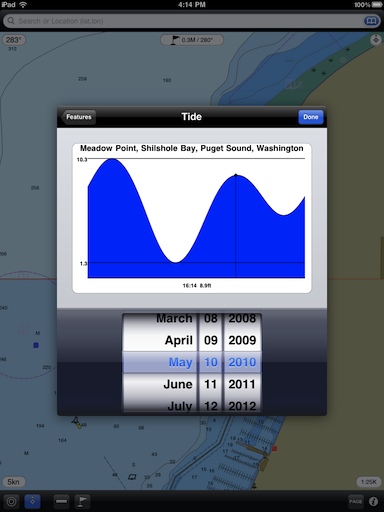

Display of tide information about Meadow Point in Shilshole Bay. The date picker at the bottom can be used to select any date. Dragging a finger on the tide graph, shows the tide level for a particular time of the day.
Stacks Image 76

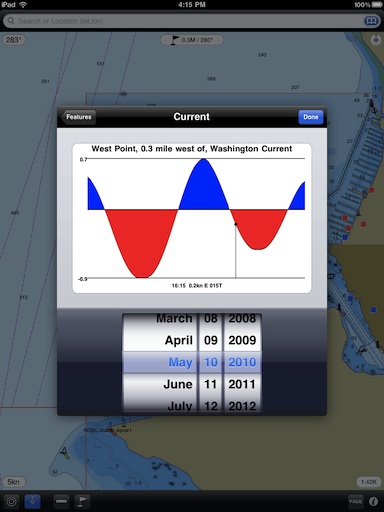

Display of current information about West Point at the bottom of Shilshole Bay. This display works similarly to the tide graph presented earlier, but information is presented in knots instead of feet. Direction of the current is also shown.
Stacks Image 79

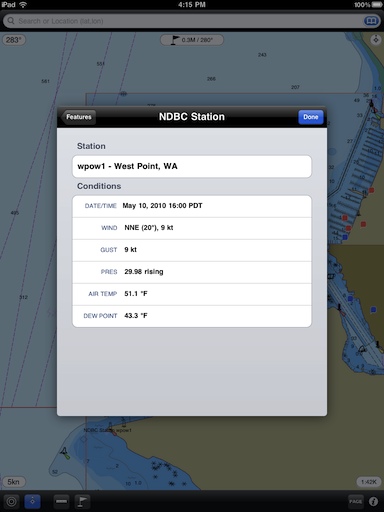

Current weather information collected at the NDBC station at West Point is presented. This station measures wind and wind gust, temperature/dewpoint and barometric pressure. Water stations may also include wave heights and periods.
Stacks Image 82

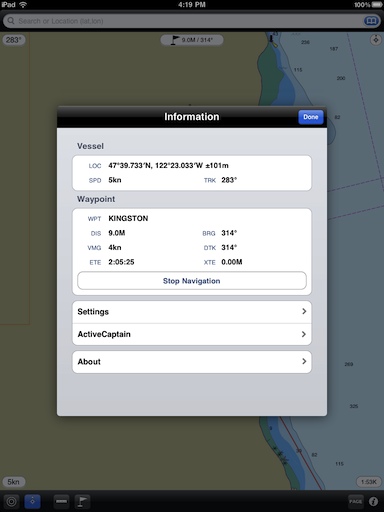

Information view. This includes current vessel location and speed and waypoint information. Access to Charts&Tides and ActiveCaptain settings is available here as well.
Stacks Image 85

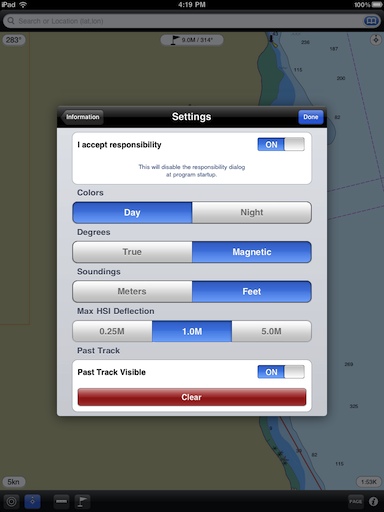

Display of Charts&Tides settings. Choose between day and night mode, whether to display true or magnetic degrees and whether soundings should be in meters or feet from here.
Stacks Image 88

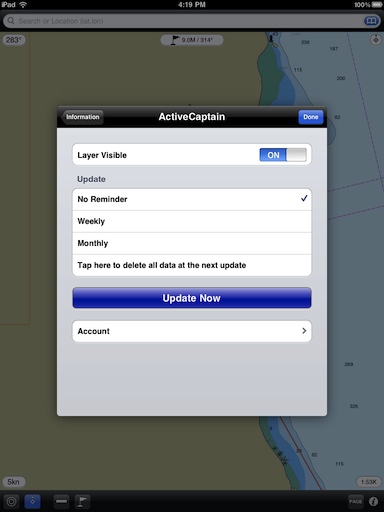

This is where you perform ActiveCaptain updates. Enter your ActiveCaptain credentials under "Account" and simply tap on the "Update Now" button to download the full ActiveCaptain database on your iPad.

The first update is large and can take a long time to complete. Subsequent updates should be much faster.
